Brand:HOMNECKS
These extraordinary terminals exhibit excellent resistance to high temperatures, making them perfectly suitable for various demanding environments. Their ability to withstand high pressures further attests to their outstanding electrical performance.
Item No :
H65C-11.0Payment :
T/TProduct Origin :
ChinaColor :
BLACKBarrier Terminal Block
When it comes to electrical functionality, our 10.0mm Pitch Bent Needle Terminal surpasses expectations, offering unparalleled electrical performance that meets the highest industry standards. Trust in our terminals to deliver exceptional results.
1.Type and Pole
Type:Barrier Terminal Block
Pole:
2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
2.Material Of Barrier Terminal Block
Housing | PA66, UL94V-0 |
Screw | M4 steel,Zinc plated,“-” slot type |
Terminal | Brass,Tin plated |
3.Electrical Of Barrier Terminal Block
Rated Voltage |
UL IEC 300V 750V |
Rated Current | 25A 32A |
Contact Resistance | 20mΩ(MAX) |
Insulation Resistance | 500MΩ/DC500V |
Withstanding Voltage | AC 2000V/1 Min |
Wire range | 22-12AWG 4.0mm² |
4.Mechanical Of Barrier Terminal Block
Temp. Range | -40℃~ +105℃ |
MAX Soldering | +250, for 5 Sec. |
Torque | 1.2N.m |

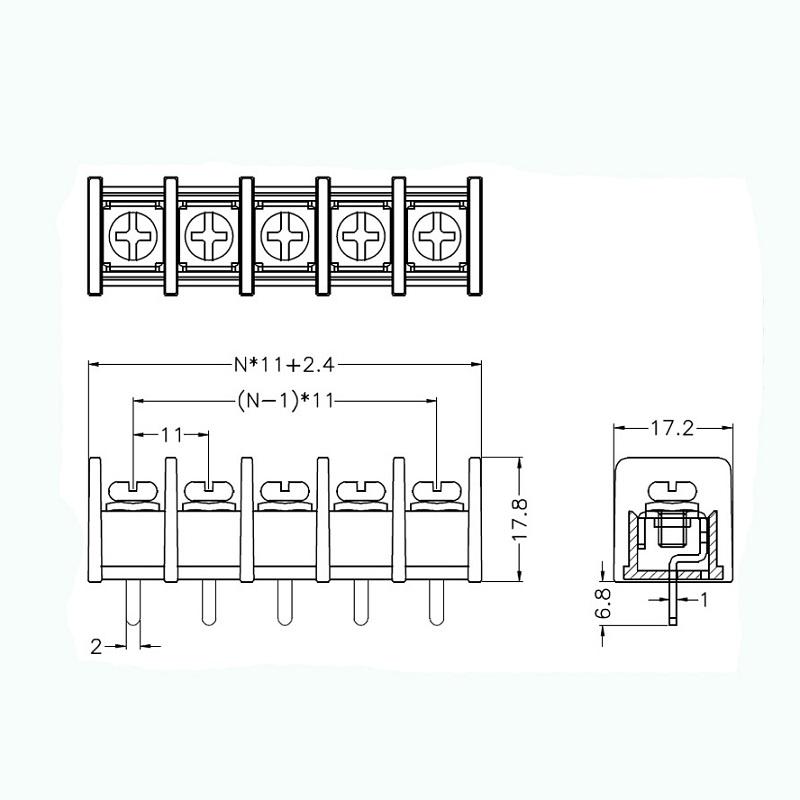

5.Dimensions
6.Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
7.Application Of Barrier Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
8.Package Of Barrier Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
