Brand:HOMNECKS
Incorporating this remarkable terminal block into your designs will elevate your projects to new heights of excellence and efficiency. Its meticulous craftsmanship guarantees seamless connectivity, eliminating any worries of loose or unreliable connections.
Item No :
H45C-9.5Payment :
T/TProduct Origin :
ChinaColor :
BLACKBarrier Terminal Block
So, whether your control system requires exquisite precision or demands steadfast reliability, rest assured that this remarkable 9.5 pitch PCB terminal block will meet and exceed your expectations. The epitome of quality and innovation, it is the answer to all your electrical connection needs.
1.Type and Pole
Type:Barrier Terminal Block
Pole:
2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
2.Material Of Barrier Terminal Block
Housing | PA66, UL94V-0 |
Screw | M3 steel,Zinc plated,“-” slot type |
Terminal | Brass,Tin plated |
3.Electrical Of Barrier Terminal Block
Rated Voltage |
UL IEC 300V 750V |
Rated Current | 25A 32A |
Contact Resistance | 20mΩ(MAX) |
Insulation Resistance | 500MΩ/DC500V |
Withstanding Voltage | AC 2000V/1 Min |
Wire range | 22-12AWG 4.0mm² |
4.Mechanical Of Barrier Terminal Block
Temp. Range | -40℃~ +105℃ |
MAX Soldering | +250, for 5 Sec. |
Torque | 1.2N.m |

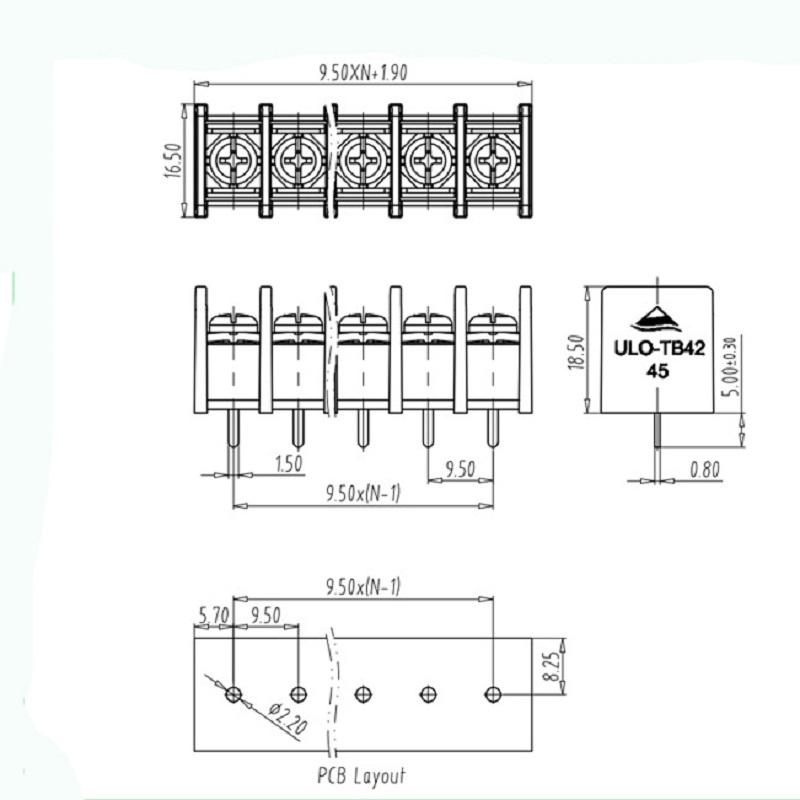

5.Dimensions
6.Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
7.Application Of Barrier Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
8.Package Of Barrier Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
