Brand：HOMNECKS
Not only does this terminal offer convenience, but its compact design also aims to optimize your valuable enclosure space. Its precision craftsmanship ensures that no inch is wasted, allowing you to truly maximize the potential of your electrical control system.
Item No :
H15EDGCR-3.5Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqPluggable Pcb Terminal Block
Choose our 3.5mm pitch plug-in style PCB terminal, and let it be the guardian of your electrical control, ensuring a seamless and efficient operation for years to come.
1.Type and Pole
Type: Pcb Pluggable Screw Terminal Block
Pole:
| 2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
| 8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
| 14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
| 20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
2.Material Of Pluggable Terminal Block
| Housing | PA66, UL94V-0 |
| Pin header | Copper alloy ,Tin Plated |
3.Electrical Of Pluggable Terminal Block
| Rated Voltage |
UL IEC 300V 250V |
| Rated Current | 8A 7A |
| Contact Resistance | 20mΩ(MAX) |
| Insulation Resistance | 500MΩ/DC500V |
| Withstanding Voltage | AC 1500V/1 Min |
4.Mechanical Of Pluggable Terminal Block
| Temp. Range | -40℃~ +105℃ |
| MAX Soldering | +250, for 5 Sec. |

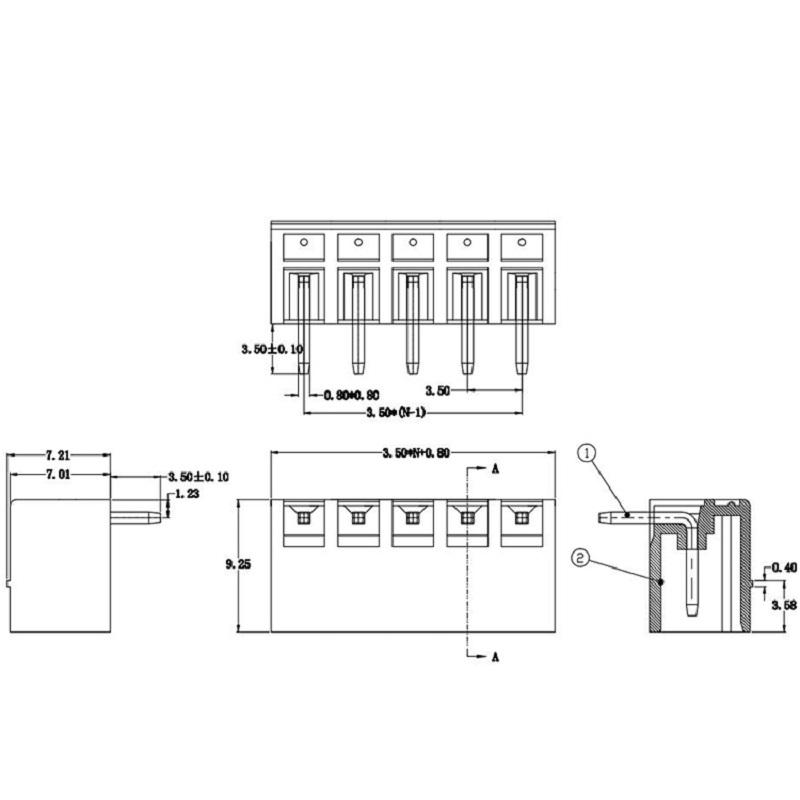

5.Dimensions
6.Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
7.Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
8.Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
