Brand:HOMNECKS
Trust in its ability to elevate your projects to new heights, while adhering to the highest industry standards.
Item No :
H128A3-5.0Payment :
T/TProduct Origin :
ChinaColor :
green ,we can also make other color if meet moqScrew Pcb Terminal Block
Whether you are seeking a solution for industrial automation or electronic device manufacturing, our 5.0 mm Pitch PCB Three Row Screw Terminal is the epitome of excellence. Embrace its seamless functionality and unparalleled performance.
1.Type and Pole
Type:Screw Terminal Block
Pole:
2 pin terminal block | 3 pin terminal block | 4 pin terminal block | 5 pin terminal block | 6 pin terminal block | 7 pin terminal block |
8 pin terminal block | 9 pin terminal block | 10 pin terminal block | 11 pin terminal block | 12 pin terminal block | 13 pin terminal block |
14 pin terminal block | 15 pin terminal block | 16 pin terminal block | 17 pin terminal block | 18 pin terminal block | 19 pin terminal block |
20 pin terminal block | 21 pin terminal block | 22 pin terminal block | 23 pin terminal block | 24 pin terminal block |
2.Material Of Pluggable Terminal Block
Housing | PA66, UL94V-0 |
Screws | M2.5 steel Zinc plated |
Cage | Copper alloy,Tin Plated |
Pin header | Brass,Tin plated |
3.Electrical Of Pluggable Terminal Block
Rated Voltage |
UL IEC 300V 250V |
Rated Current | 10A 18A |
Contact Resistance | 20mΩ(MAX) |
Insulation Resistance | 500MΩ/DC500V |
Withstanding Voltage | AC 2000V/1 Min |
Wire range | 26-14AWG 2.5mm² |
4.Mechanical Of Pluggable Terminal Block
Temp. Range | -40℃~ +105℃ |
MAX Soldering | +250, for 5 Sec. |
Torque | 0.4N.m 3.61Lb.in |
Strip length | 6-7mm |

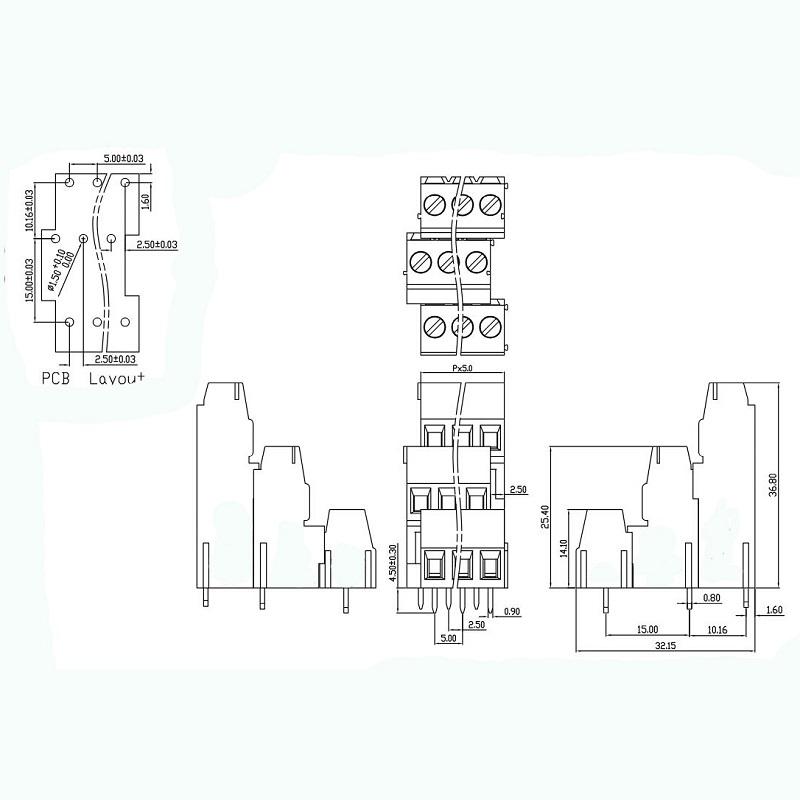

5.Dimensions
6.Advantages
☑ Adapt to multi-type sockets, device design is highly flexible
☑ Keying requirements can be met
☑ Universal installation method, suitable for various situations
7.Application Of Pluggable Terminal Block
1.Motion controller 2.Three-phase power meter 3.Microcomputer protection device 4.Electric equipment
5.Automation equipment 6.Security equipment 7.Internet of things equipment
8.Package Of Pluggable Terminal Block
We choose the high quality and safe packaging material to make sure your order won't be damaged during delivery.
These trade terms are acceptable:EXW,FOB,CFR,CIF.
